8K

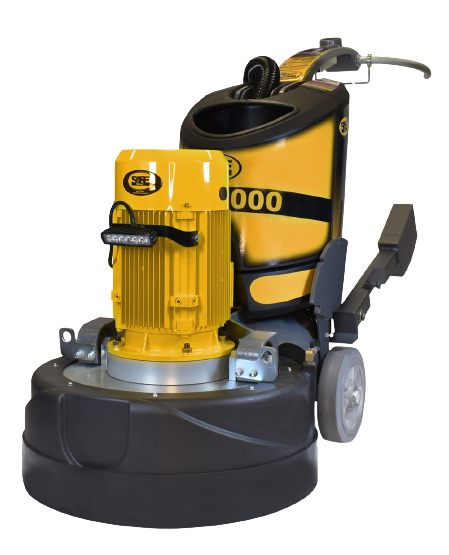

Concrete Grinder and Polisher

Item Number

PDG.8000.01 | .02 | .03

Overview:
  • Powerful 20 HP Motor
  • Perfectly Balanced
  • Built as a Low-Maintenance Grinder
  • Sleek, Ergonomic Design
  • Standard Feature Flexible Grinding Heads
  • Includes Both QCS and Flex Plates
  • Connects to SASE Bull 1250 EBS Industrial Vacuum
Request a Quote
Schedule a demo
Service Manual
Product Brochure

Technical Data:

  • Grinding Width: 30" (762 mm)
  • Machine Weight: 1365 lbs (619 kg)
  • Grinding Pressure: 755-855 lbs (342-388 kg)
  • Required Circuit (.01) : 3 Phase | 230 Volt | 40 AMP
  • Required Circuit (.02) : 2 Phase | 380 Volt | 30 AMP (European)
  • Required Circuit (.03) : 3 Phase | 460 Volt | 30 AMP
  • Machine Head: (3) 11" Heads
  • RMP Variable Speed: 850-2000 RPM
  • Motor Output: 20 HP (15 KW)
  • Dimensions (L x W x H): 86 x 47 x 32 in
    (2184 x 1194 x 813 mm)
