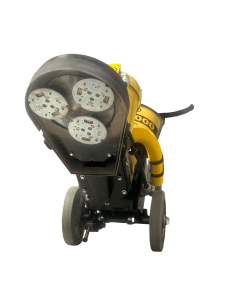

PDG 3000

Concrete Edge Grinder and Polisher

pdg-3000-concrete-grinder
Item Number

PDG.3000.04 | .05 | .06

Overview:
  • Easier Edge Grinding Process with the World's First True, Active Planetary Edge Grinder
  • Low Profile Head Design to Operate Under Shelving and "Toe Kicks"
  • Variable Speed to Dial in the Exact Speed Needed when Grinding, Honing, and Polishing
  • 3-Way Adjustable Head for the Perfect Grinding Position
  • Adjustable Pivot-Lever to Adjust Toward the Wall While Walking Straight
  • Adjustable Pitch-Knob to Level Head Forward or Back
  • Adjustable Tilt-Axle to Match the Slope of the Floor
  • Includes (3) 128mm Vulcanized Velcro Plates
  • Connects to a Bull 255 Compact Industrial Vacuum for 99.99% Dust-Free Grinding
Request a Quote
Schedule a demo
Service Manual
Product Brochure

Technical Data:

  • Grinding Width: 11" (279 mm)
  • Machine Weight: 258 lbs (279 kg)
  • Grinding Pressure: 130 lbs (59 kg)
  • Required Circuit (.04): 1 Phase | 230 Volt | 40 AMP
  • Required Circuit (.05): 3 Phase | 230 Volt | 40 AMP
  • Required Circuit (.06): 3 Phase | 460 Volt | 30 AMP
  • Machine Head: (1) 11" Heads
  • RMP Variable Speed: 850-2000 RPM
  • Motor Output: 3 HP (2.2 KW)
  • Dimensions (L x W x H): 36 x 38 x 17 in
    (914 x 965 x 432 mm)
