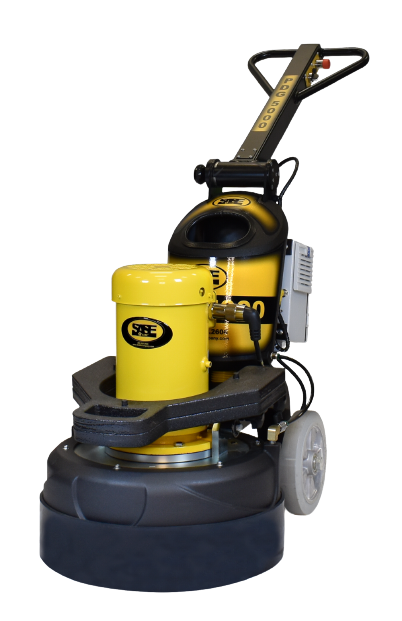

PDG 5000

Concrete Grinder and Polisher

Item Number

PDG.5000.01

Overview:
  • Compact Concrete Grinder Built for Retail and Residential Spaces
  • Connects to a Bull 300 or 255 for 99.99% Dust-Free Operation
  • The Head and Motor can be Removed from the Frame for Easier Transportation
  • Includes QCS Plates
  • Locking Adjustment for Angle of Handle, no Pins to Lose
  • Three Flexible, Powerful Heads Provide Three Points of Contact to Best Follow the contour of the Floor
  • Two 25 lb Weights Included
Request a Quote
Schedule a demo
Service Manual
Product Brochure

Technical Data:

  • Grinding Width: 20" (508 mm)
  • Machine Weight: 372 lbs (169 kg)
  • Grinding Pressure: 218 lbs (99 kg)
  • Required Circuit: 1 Phase | 230 Volt | 30 AMP
  • Machine Head: (3) 7" Heads
  • RMP Variable Speed: 850-2000 RPM
  • Motor Output: 5 HP (3.7 KW)
  • Dimensions (L x W x H): 54 x 34 x 21 in
    (1372 x 1372 x 533 mm)
